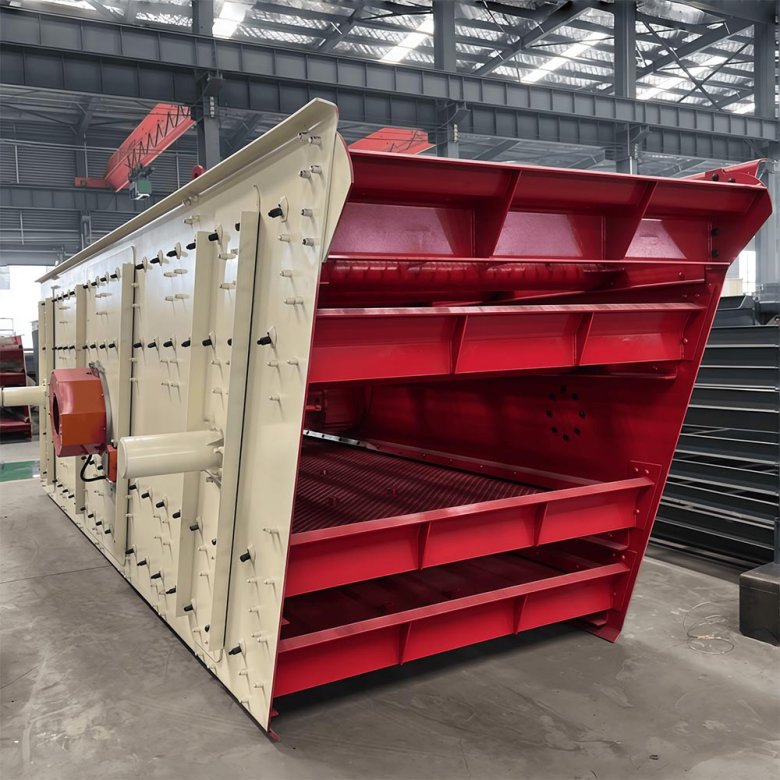

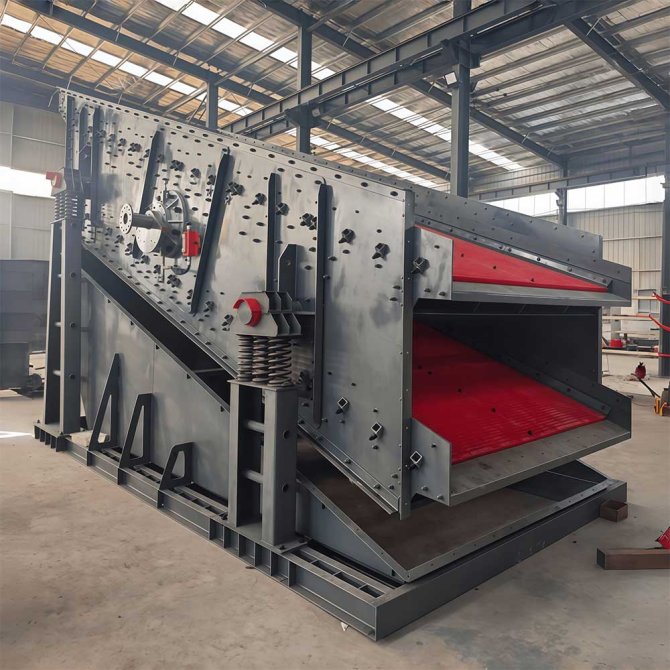

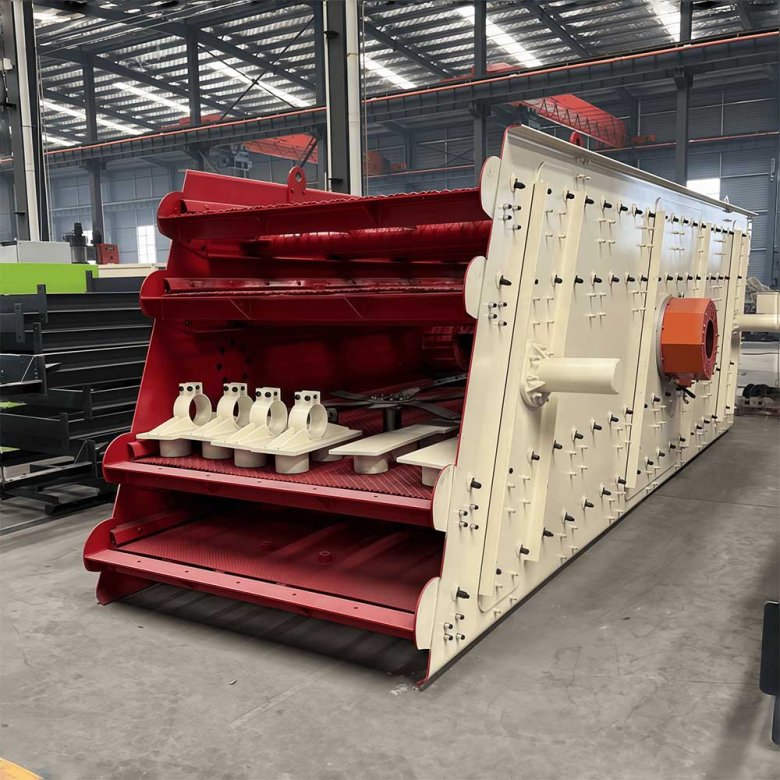

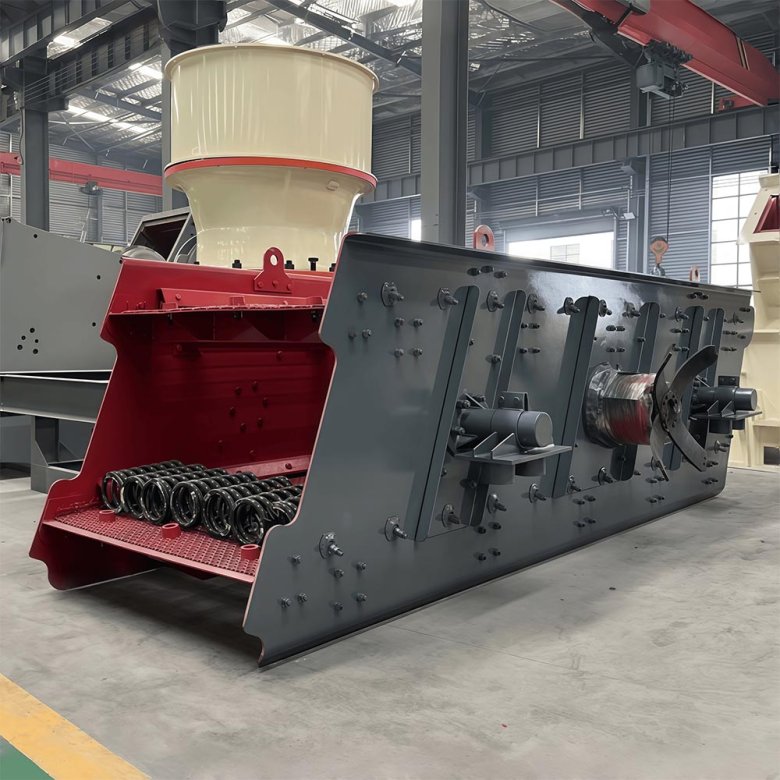

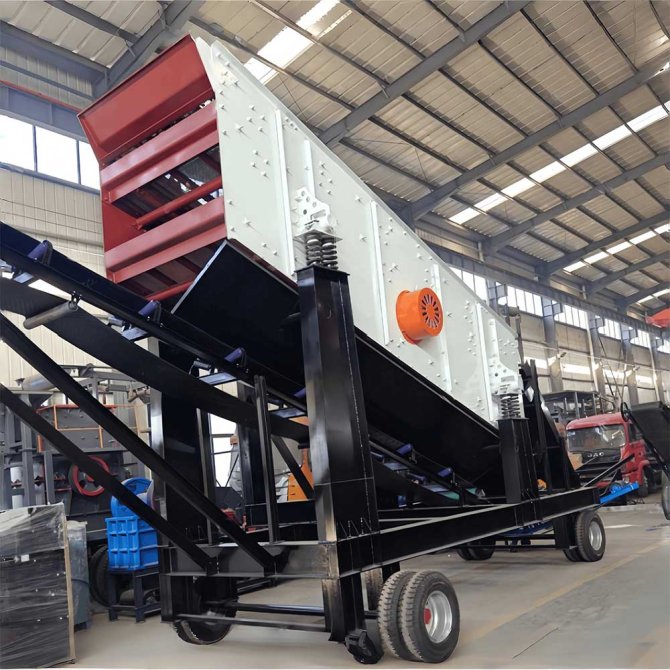

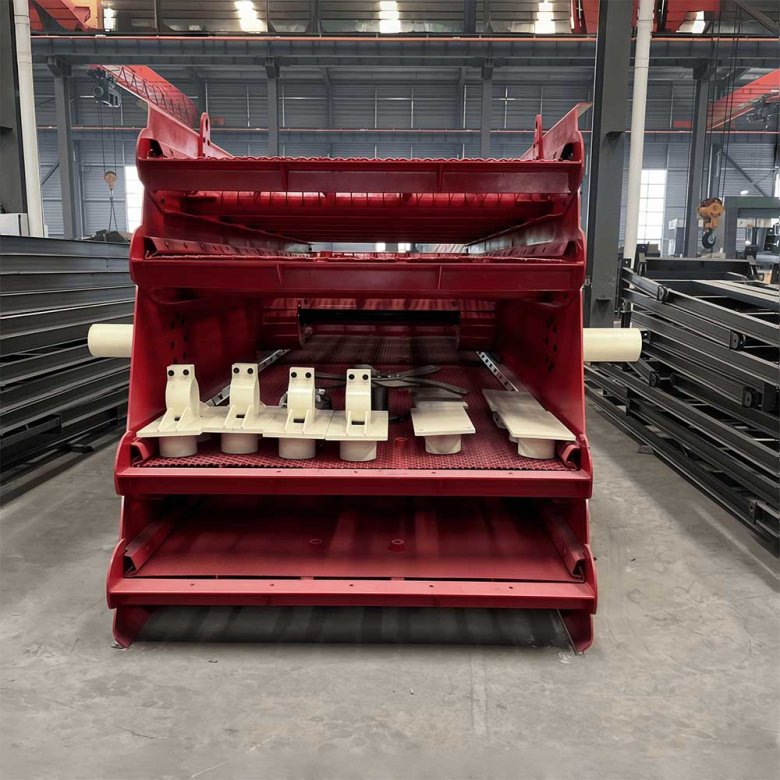

Inclined Vibrating Screen

As previously mentioned, the motor drives the vibrator to generate an exciting force, causing the screen box to move in a circular motion. The material is thrown and moves forward on the inclined screen surface. Particles smaller than the screen aperture pass through, while larger particles are discharged from the outlet, thereby achieving precise material classification.

Screen Aperture Size: 3-80mm
Processing Capacity: 30-400 t/h
Maximum Feed Size: ≤400mm

Inquire Now

Add to Cart

Features
Specifications
Inquiry Now
Related Products
Customer Reviews

Features

- High Efficiency

  Utilizes eccentric blocks or block eccentric vibrators to generate strong exciting forces, ensuring sufficient material throwing motion and a high screening rate.
- Simple Structure

  Features a classic design with fewer components, making daily installation, commissioning, and maintenance (such as screen mesh replacement) highly convenient.
- Stable Vibration

  Equipped with rubber isolation springs and an advanced shock absorption system. It ensures smooth passage through the resonance zone, operates with low noise, and effectively protects the motor from impacts.
- Wide Application

  Widely used not only in mining, metallurgy, and construction materials, but also in the chemical, power, and environmental solid waste treatment industries.
- High Automation & Durability

  Some models support automatic cleaning to prevent screen blinding. High-strength bolt connections or large-scale machine-bent side plates are used to avoid welding cracks, significantly extending the service life.

Specifications

Model	Screen mesh (mm)	Layers	Sieve pore size (mm)	Max. feed size (mm)	Production capacity (t/h)	Power (kw)	Vibrating frequency (r/min)	Double amplitude (mm)	Overall dimensions （mm）	weight （t）
2YZS1237	3700 × 1200	2	3-50	200	10-120	11	870	5-9
3YZS1237	3700 × 1200	3	3-50	200	10-120	11	870	5-9
2YZS1548	4800 × 1500	2	3-100	400	30-275	11	870	5-9	560019001200	3
3YZS1548	4800 × 1500	3	3-100	400	30-275	15	870	5-9	560019001500	4
4YZS1548	4800 × 1500	4	3-100			22			560019001800	5
2YZS1848	4800 × 1800	2	3-100	400	56-330	18.5	870	5-9
3YZS1848	4800 × 1800	3	3-100	400	56-330	18.5	870	5-9
2YZS1860	6000 × 1800	2	3-100	400	65-586	18.5	870	5-9	680025001300	5
3YZS1860	6000 × 1800	3	3-100	400	65-586	22	870	5-9	680025001600	6
4YZS1860	6000 × 1800	4	3-100			30			680025002000	7
2YZS2060	6000 × 2000	2	3-100			22			680028001300	5.5
3YZS2060	6000 × 2000	3	3-100			30			680028001700	7
4YZS2060	6000 × 2000	4	3-100			37			680028002100	8.5
2YZS2160	6000 × 2100	2	3-100	400	81-720	30	730	5-9
3YZS2160	6000 × 2100	3	3-100	400	81-720	30-37	730	5-9
2YZS2460	6000 × 2400	2	3-150	400	100-810	22	770	5-9	680031001300	6.5
3YZS2460	6000 × 2400	3	3-150	400	100-810	30	770	5-9	680031001700	9
4YZS2460	6000 × 2400	4				37			680031002100	11
2YZS2470	7000 × 2400	2				22			800031001300	7
3YZS2470	7000 × 2400	3				30			800031001700	10
4YZS2470	7000 × 2400	4				22×2			800031002100	12
2YZS2660	6000 × 2600	2	3-150	400	200-810	45	770	5-9
3YZS2660	6000 × 2600	3	3-150	400	200-810	45	770	5-9
2YZS3070	7000 × 3000	2	3-150	400	300-810	55	750	5-9
3YZS3070	7000 × 3000	3	3-150	400	300-810	55	750	5-9
2YZS3080	8000 × 3000	2				22×2			900036001300	12
3YZS3080	8000 × 3000	3				30×2			900036001700	15
4YZS3080	8000 × 3000	4				37×2			900036002100	18
